Explorer 5823 Case

CODE: 5823

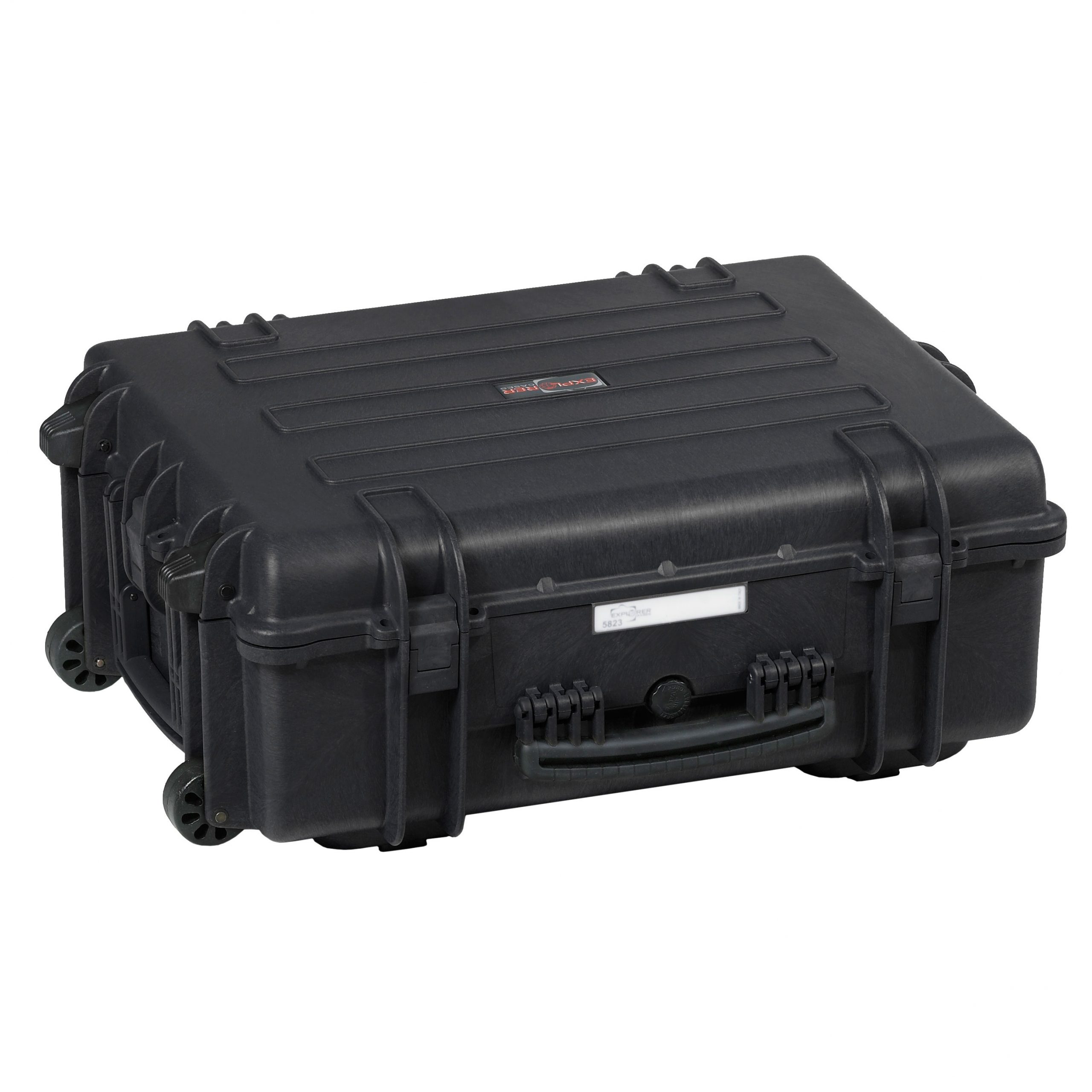

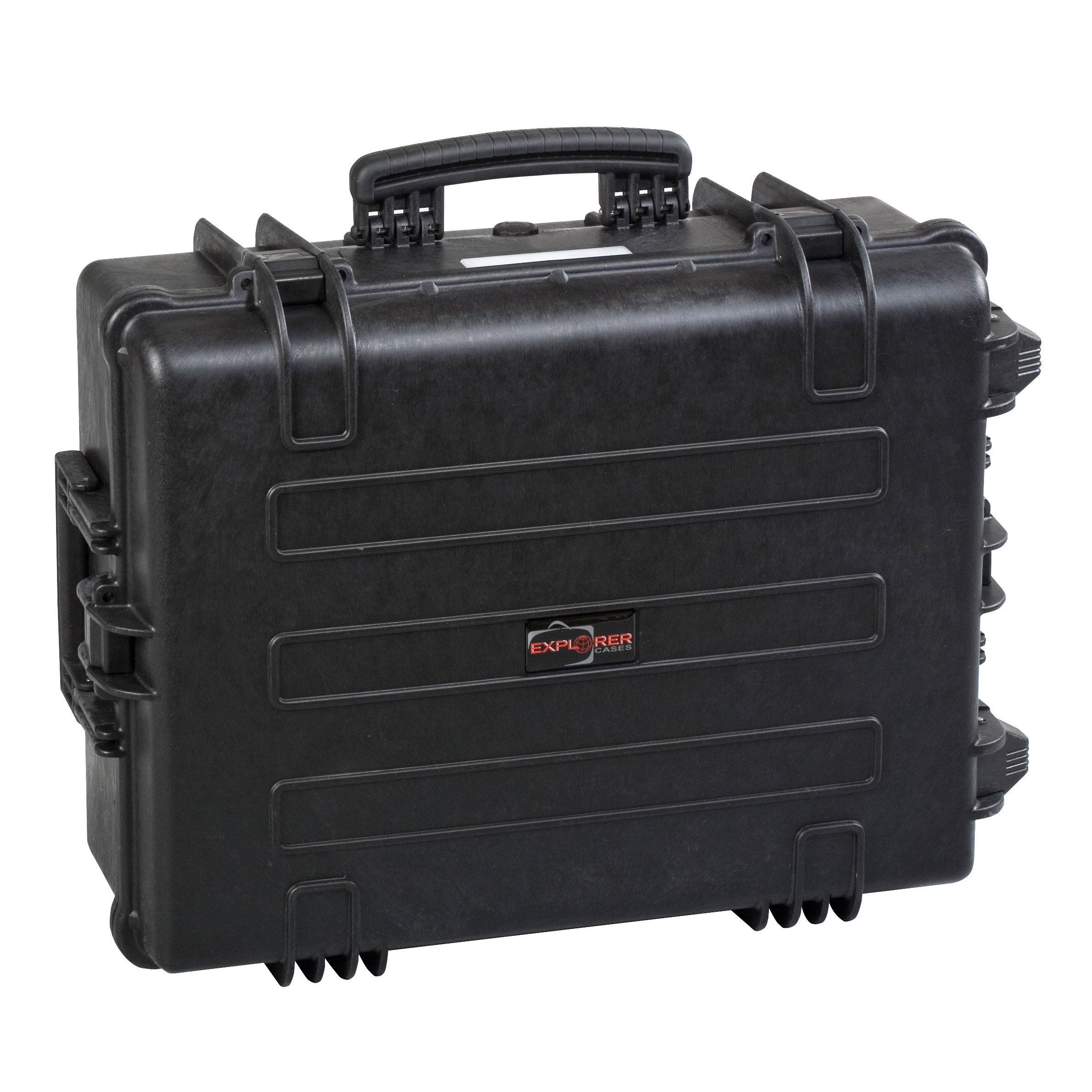

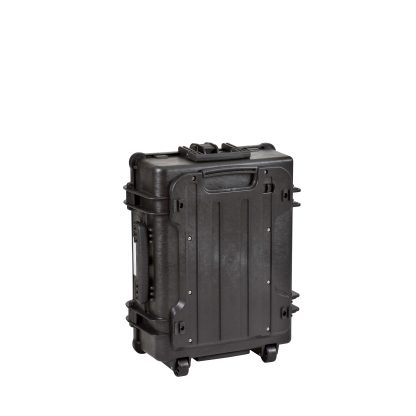

Explorer 5823 Case

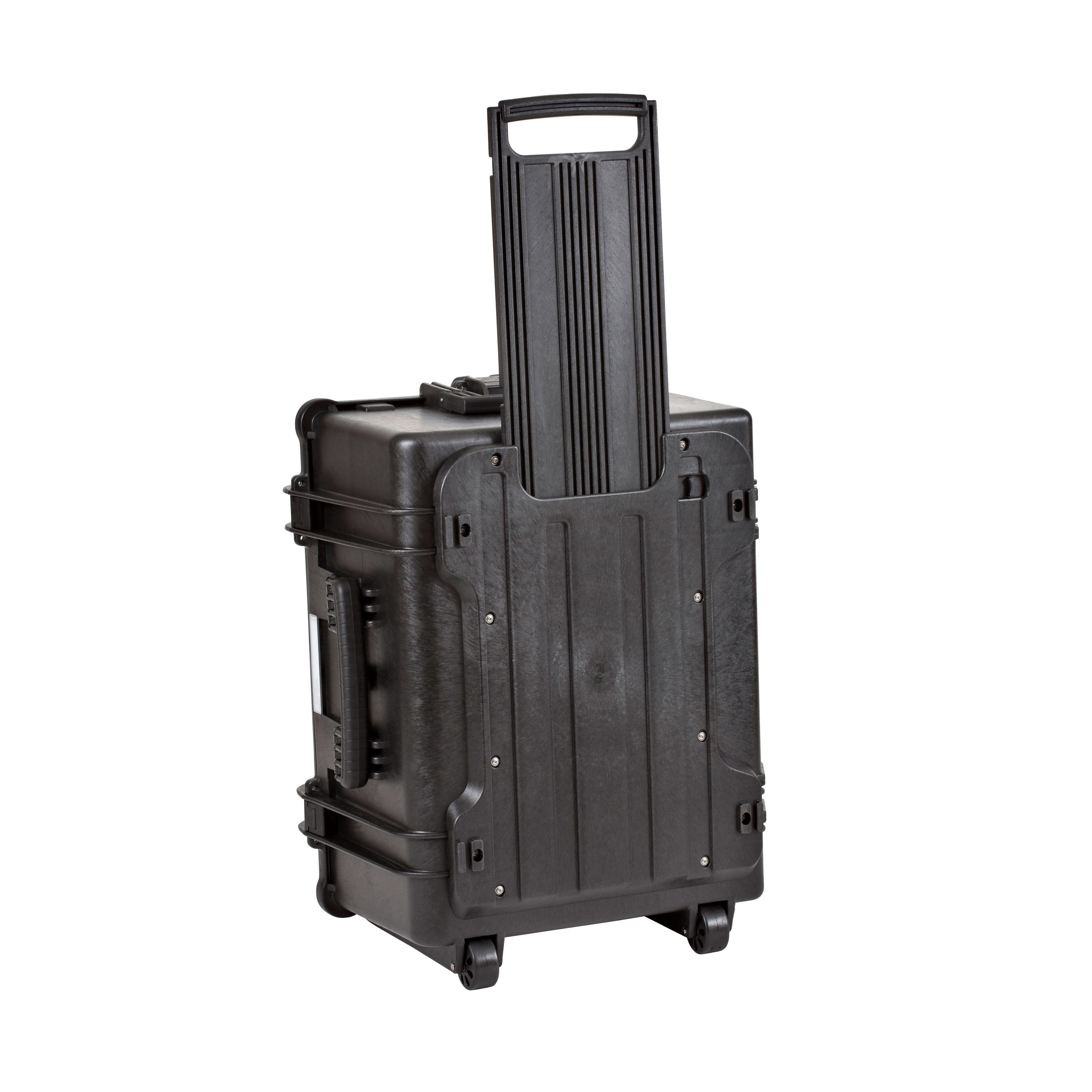

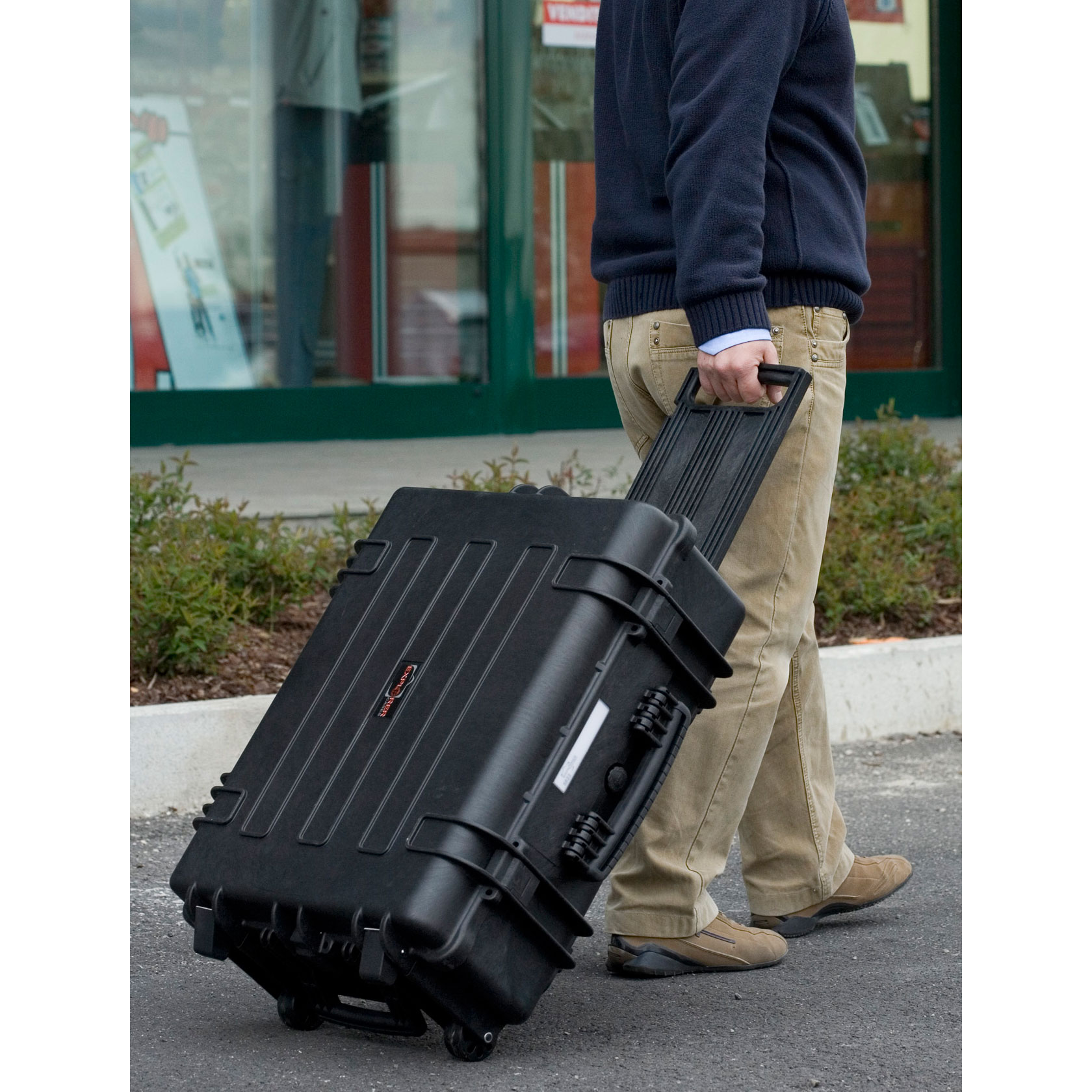

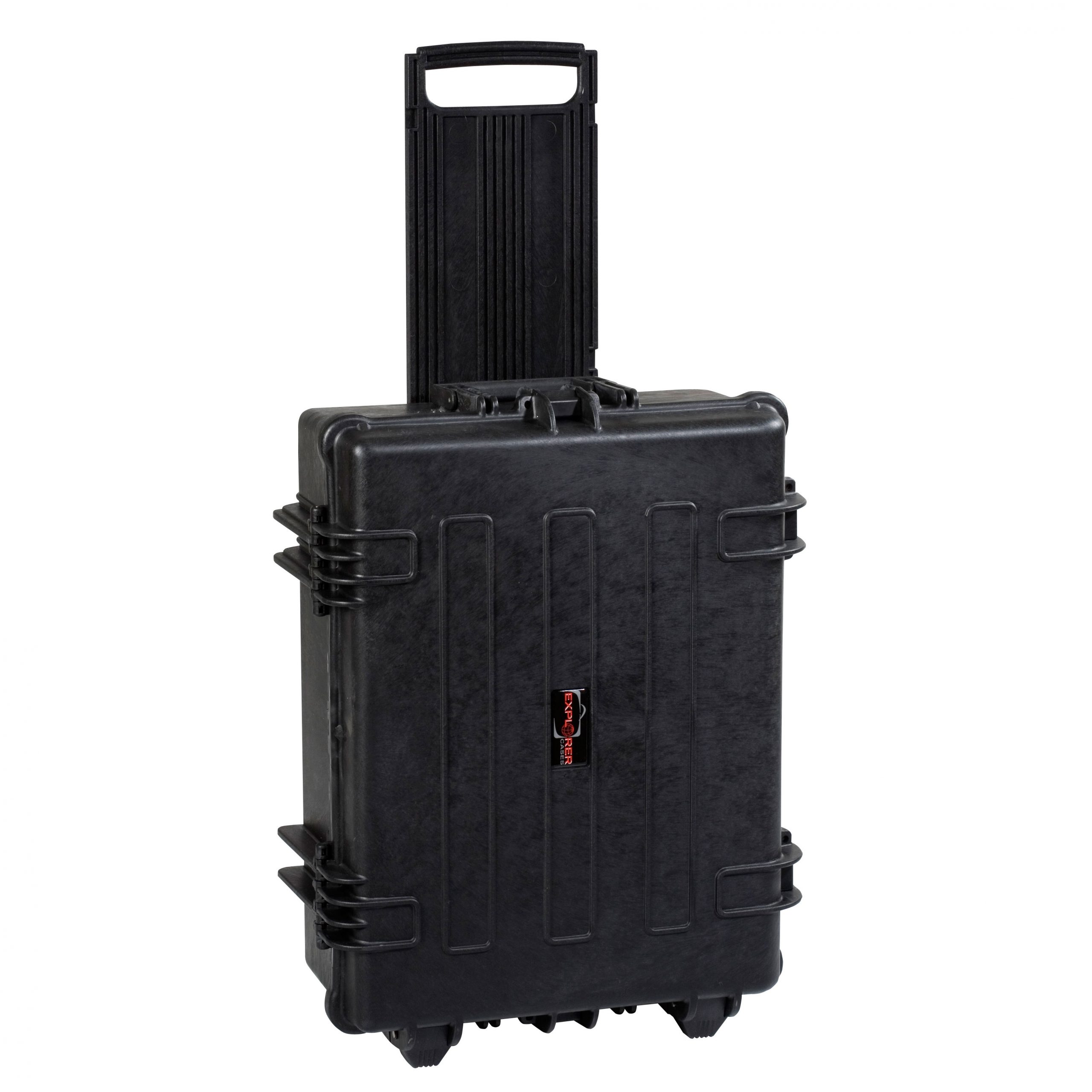

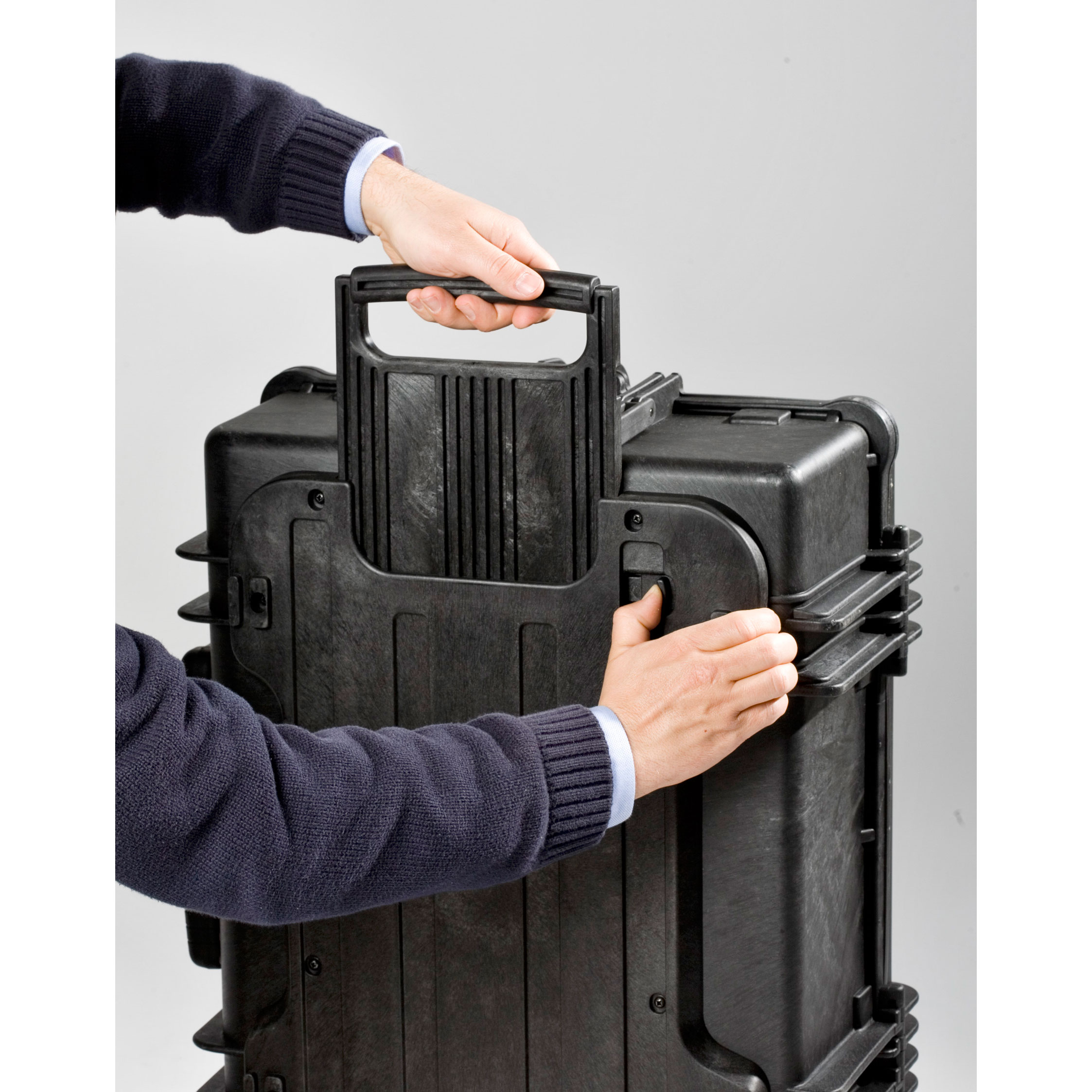

The Explorer 5823 Case is a watertight case offering absolute protection in the harshest environment for all kinds of sensitive instrumentation. The case has two padlockable points, self oiling wheels and a telescopic handle with a quick and safe lock-unlock system.

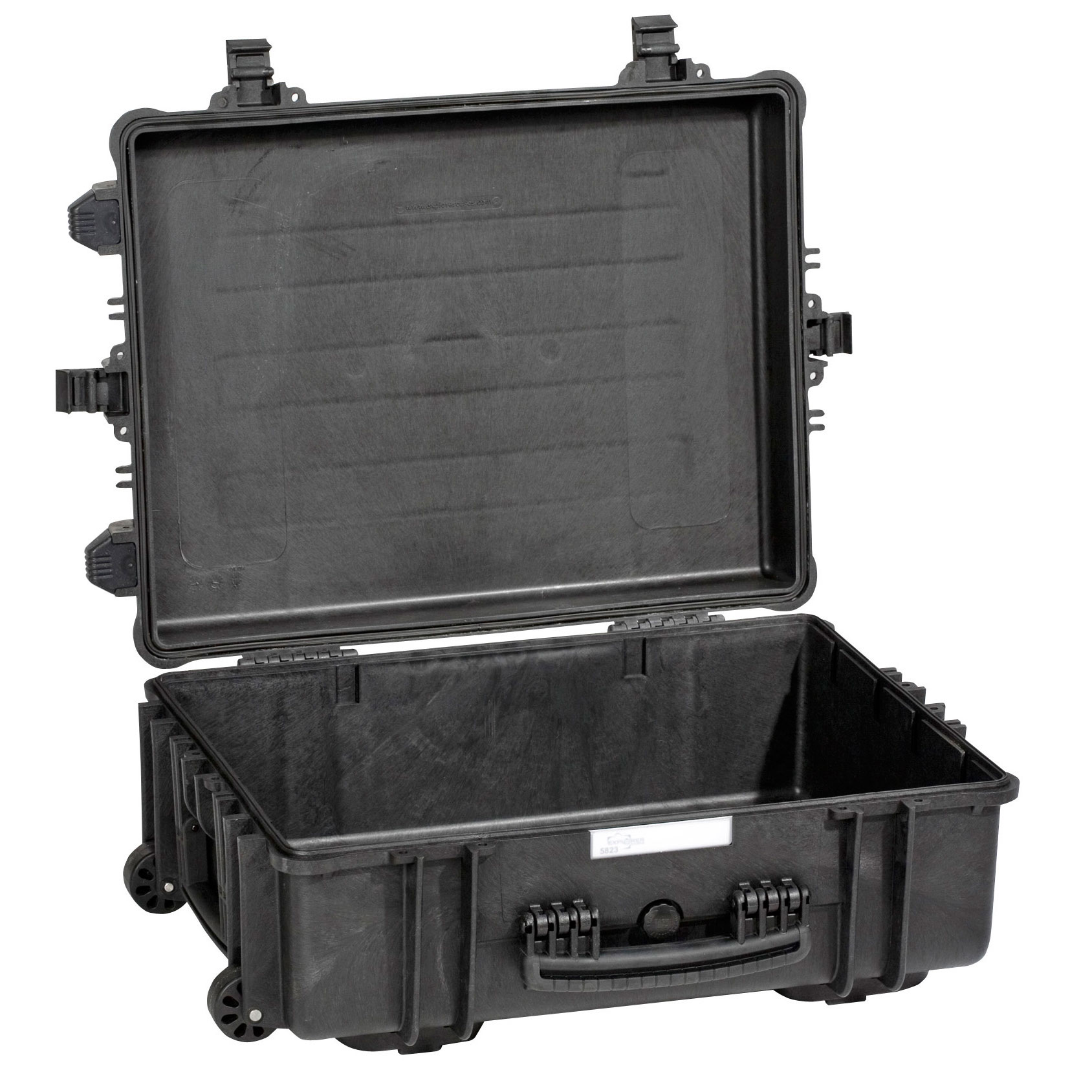

Explorer 5823 is available in three colours, black, olive drab green and orange. There are two standard configurations, empty or with layers of pre-cubed, Pick ‘n’ Pluck foam. The case is also compatible with the DIV58 padded dividers and BAG-G padded bag, ideal for storing valuable items. See the “Compatible Accessories” tab above for more accessories.

Featuring a sealing o-ring that provides the Explorer 5823 Case with it’s watertight seal and IP67 rating. The manual purge valve helps release and equalise any built up pressure inside the case.

Internal slots allow you to fit panel mounting brackets (KIT SUPP.EXPL.), offering secure equipment mounting points inside the case.

Add an Explorer patented combination padlock to your case for ultimate security and peace of mind.

Every year thousands of Explorer Cases are chosen to protect and carry sensitive and expensive equipment all over the world. Made from Explorer’s innovative Copolymer Polypropylene compound, offering safe transportation for electronic equipment, precision instrumentation and sensitive equipment. The Explorer 5823 Case can withstand the harshest conditions and is certified to resist temperatures from -33 to +90°C.

Explorer Cases are exclusively designed and manufactured in Italy, Europe.

TECHNICAL SPECIFICATIONS

External Dimensions650 (L) x 510 (W) x 245 (D) mm
Internal Dimensions580 (L) x 440 (W) x 220 (D) mm
Lid Depth60 mm
Base Depth160 mm
Weight9.17 kg
Weight with Foam10.4 kg
Volume56.1 Litres
Buoyancy36.7 kg/max
CertificatesDEF-STD 81-41
IP Rating67
Wheels?Yes

EXPLORER CASES FEATURES

Explorer Cases is a complete range of indestructible waterproof cases: the ideal solution to meet the needs of the most demanding users, in the extreme conditions. In fact, every day thousands of professionals all over the world trust and rely on their Explorer Cases to protect the most valuable tools and pieces of equipment during their journeys.

Explorer 5823 Case

COMPATIBLE EXPLORER ACCESSORIES

  • Explorer TSA Padlock

    Explorer TSA Padlock

    £15.52 (£18.62 inc. VAT)
    TSA Approved Combination Padlock
    View product
  • Explorer Combination Padlock

    Explorer Combination Padlock

    £10.94 (£13.13 inc. VAT)
    Patented Combination Padlock
    View product
  • Explorer Padlock

    Explorer Padlock

    £16.45 (£19.74 inc. VAT)
    Patented Padlock with Two Keys
    View product
  • Explorer BAG-G

    Explorer BAG-G

    £59.07 (£70.88 inc. VAT)
    Padded Bag with Adjustable Dividers for Explorer 5822, 5823 & 5833 Cases
    View product
    INT DIMENSION MM.
    435 (L) x 285 (W) x 165 (D) mm
  • Explorer COV58

    Explorer COV58

    £11.19 (£13.43 inc. VAT)
    Top Cover for Explorer DIV58, DIV58.1 & DIV58.2 Padded Dividers
    View product
  • Explorer DIV58

    Explorer DIV58

    £36.38 (£43.66 inc. VAT)
    Padded Dividers for Explorer 5822, 5823 & 5833 Cases
    View product
    INT DIMENSION MM.
    430 (L) x 275 (W) x 155 (D) mm
  • Explorer FOAM.5822

    Explorer FOAM.5822

    £83.25 (£99.90 inc. VAT)
    Foam Set for Explorer 5822 & 5823 Case
    View product
  • Explorer LIDFOAM.58

    Explorer LIDFOAM.58

    £41.47 (£49.76 inc. VAT)
    Lid Foam Set for Explorer 5822, 5823 & 5833 Cases
    View product
  • Explorer PANEXPL58

    Explorer PANEXPL58

    £37.06 (£44.47 inc. VAT)
    Lid Panel Organiser for Explorer 5822, 5823 & 5833 Cases
    View product
  • Explorer KIT SUPP.EXPL.

    Explorer KIT SUPP.EXPL.

    £20.35 (£24.42 inc. VAT)
    Metal Panel Brackets
    View product
  • Explorer KIT SUPP.PLAST.

    Explorer KIT SUPP.PLAST.

    £19.50 (£23.40 inc. VAT)
    Plastic Panel Brackets
    View product
  • Explorer KIT.EXPL.PLUGS

    Explorer KIT.EXPL.PLUGS

    £11.45 (£13.74 inc. VAT)
    Blank Bracket Inserts
    View product

DOWNLOADS

CERTIFICATIONS Explorer 5823 Case
FOAM LAYOUT Explorer 5823 Case
TECHNICAL DRAWINGS Explorer 5823 Case
