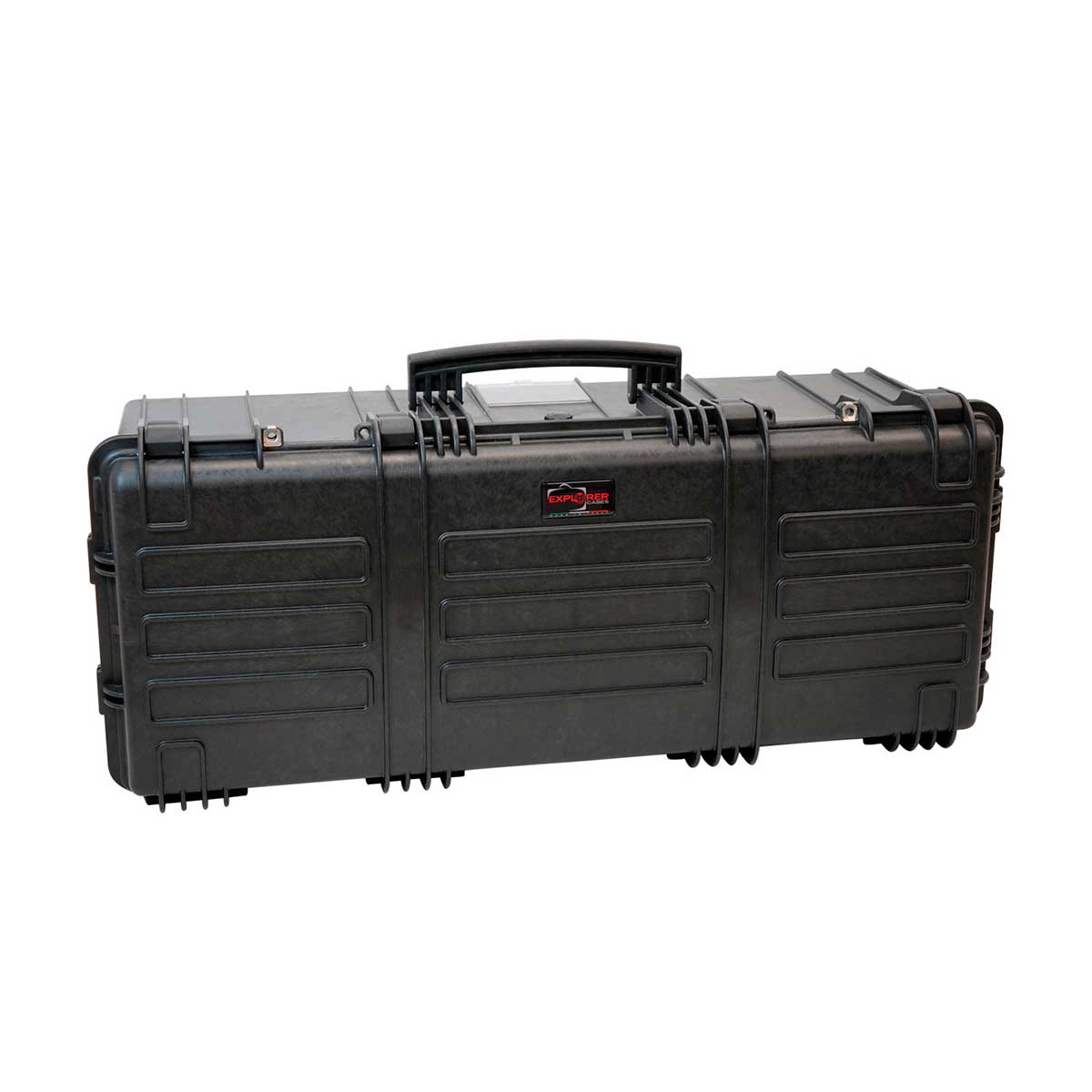

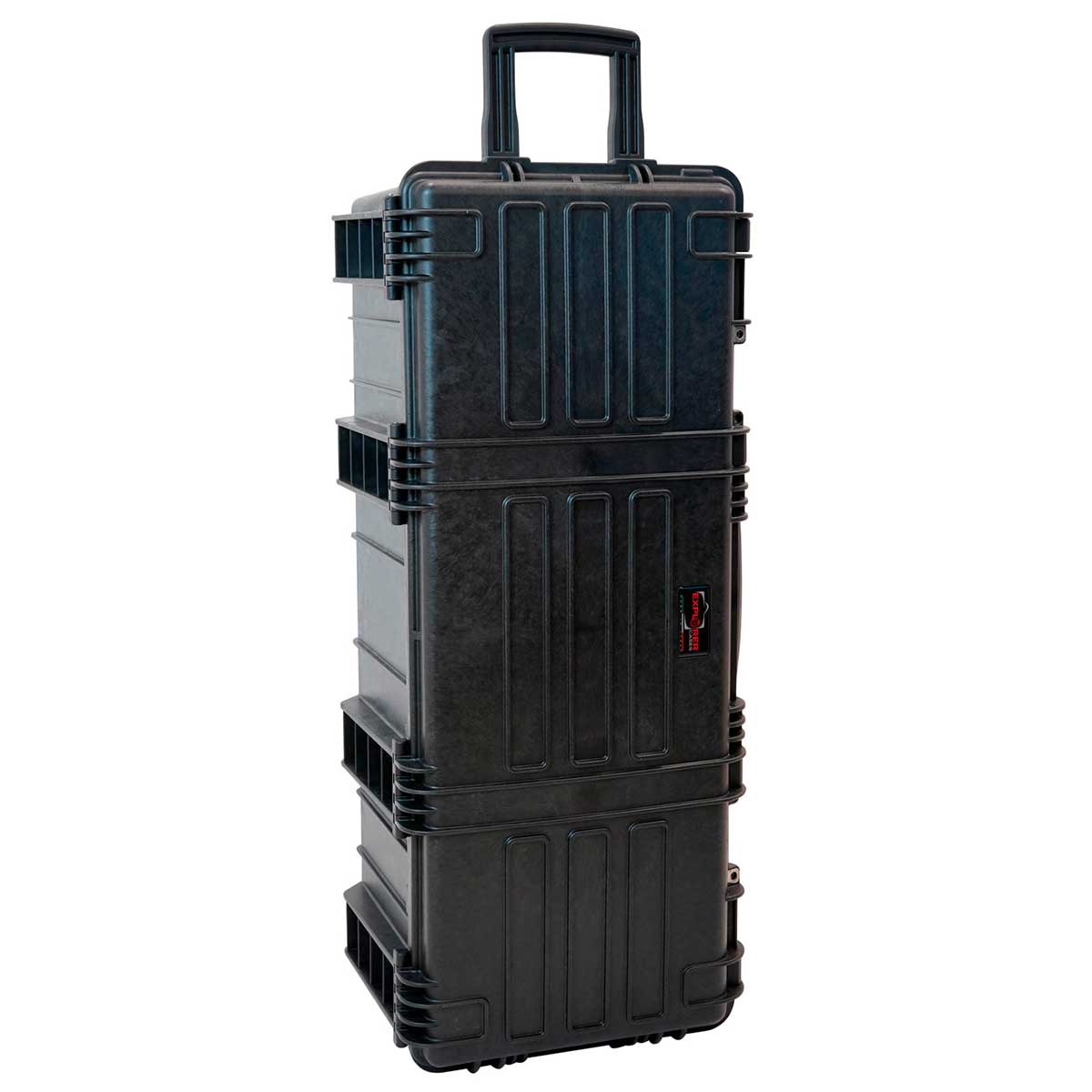

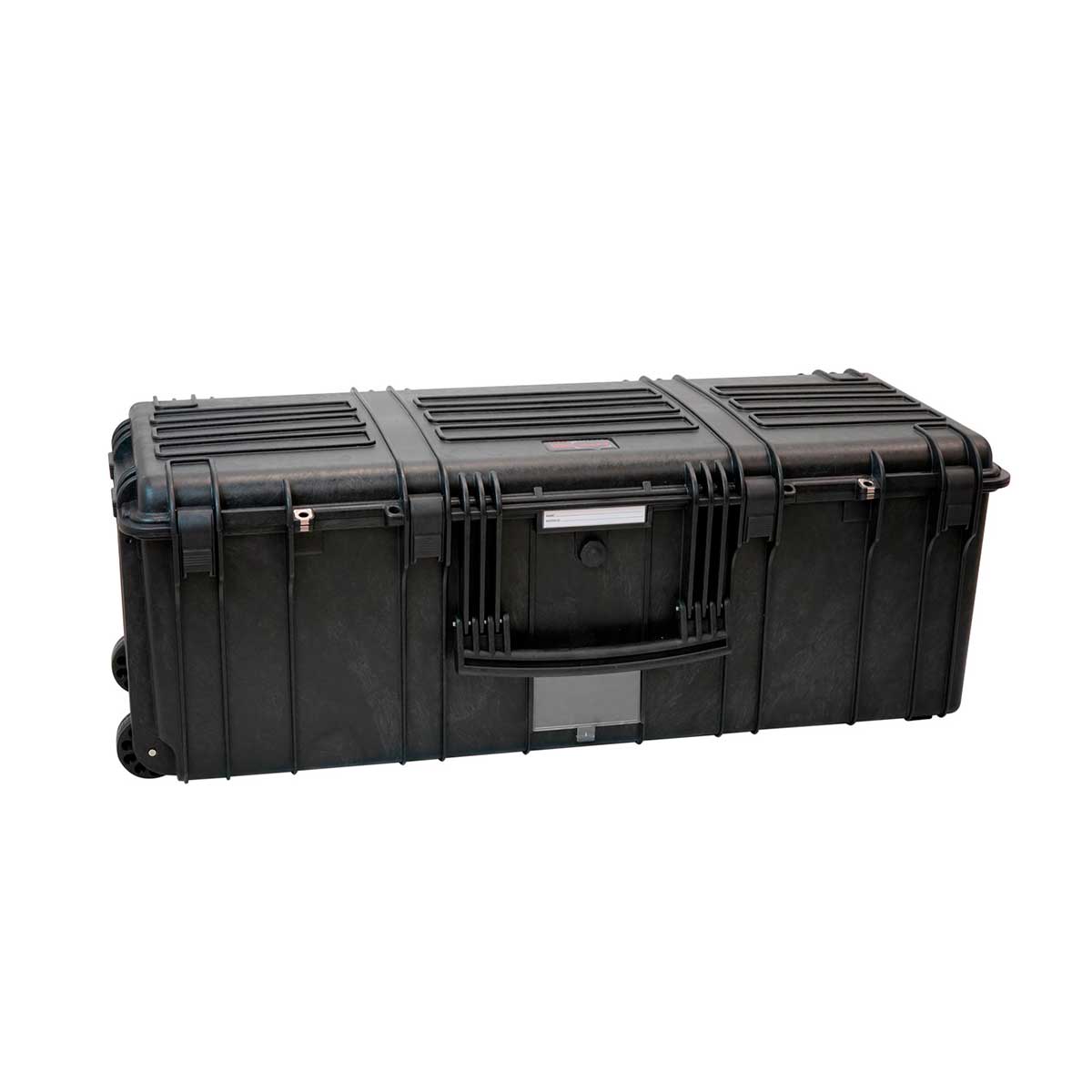

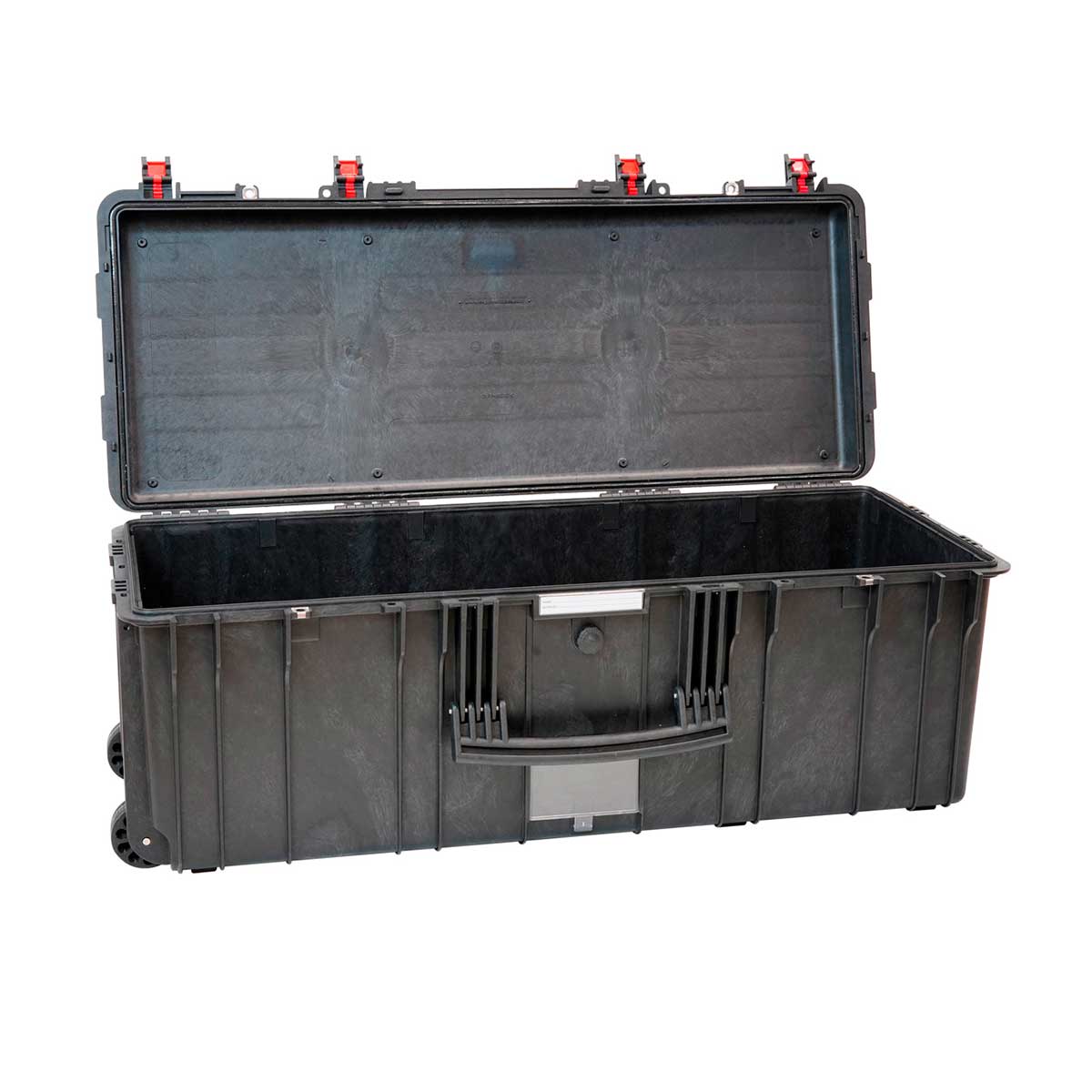

Explorer 9433 Case

CODE: 9433

Interior: 936 x 350 x 330 mm
Exterior: 1009 x 412 x 354 mm

The Explorer 9433 Case is a double depth waterproof case. The 9433 has double action latches, PU gasket and wheels with bearings. The side handles offer a two person lift option.

Explorer 9433 is available in four colours, black, olive drab green, desert sand and orange. There are two standard configurations, empty or with layers of pre-cubed, Pick ‘n’ Pluck foam. See the “Compatible Accessories” tab above for more accessories.

Featuring a sealing o-ring that provides the Explorer 9433 Case with it’s watertight seal and IP67 rating. The manual purge valve helps release and equalise any built up pressure inside the case.

Internal slots allow you to fit panel mounting brackets (KIT SUPP.EXPL.), offering secure equipment mounting points inside the case.

Add an Explorer patented combination padlock to your case for ultimate security and peace of mind.

Every year thousands of Explorer Cases are chosen to protect and carry sensitive and expensive equipment all over the world. Made from Explorer’s innovative Copolymer Polypropylene compound, offering safe transportation for electronic equipment, precision instrumentation and sensitive equipment. The Explorer 9433 Case can withstand the harshest conditions and is certified to resist temperatures from -33 to +90°C.

Explorer Cases are exclusively designed and manufactured in Italy, Europe.

TECHNICAL SPECIFICATIONS

External Dimensions1009 (L) x 412 (W) x 354 (D) mm
Internal Dimensions936 (L) x 350 (W) x 330 (D) mm
Lid Depth42 mm
Base Depth288 mm
Weight10.2 kg
Weight with Foam12.7 kg
Volume108 Litres
Buoyancy84.9 kg/max
CertificatesDEF-STD 81-41
IP Rating67
WheelsYes

EXPLORER CASES FEATURES

Explorer Cases is a complete range of indestructible waterproof cases: the ideal solution to meet the needs of the most demanding users, in the extreme conditions. In fact, every day thousands of professionals all over the world trust and rely on their Explorer Cases to protect the most valuable tools and pieces of equipment during their journeys.

Explorer 9433 Case

COMPATIBLE EXPLORER ACCESSORIES

DOWNLOADS

CERTIFICATIONSExplorer 9433 Case
TECHNICAL DRAWINGSExplorer 9433 Case
